The renderer

• Every picture here was taken by a test
• The template library
• A form
• The design system
• The screens with their frame and not yet their content
• Where a reader lands with nothing chosen
• What is not built
• Running the battery yourself

No specification governs any screen here: it is FerroCHART’s own design. What a field collects and what it admits come from the operational template, and the openEHR Reference Model decides what a value is. Everything about how a screen looks is ours.

The renderer is a WebAssembly bundle that reads the form definition the server publishes. It links no engine crate, so the screens below are what any client of that published format can draw.

Every picture here was taken by a test

The screenshots on this page are taken by the end-to-end battery. Nobody takes them by hand. scripts/ui-e2e.sh --docs-shots starts the server over two committed openEHR CKM templates, serves the renderer against it, drives a pinned headless Chromium through every screen, and writes one image per screen per theme into website/book/src/operate/img/renderer.

The journeys and the capture share one definition of what each screen has to have drawn before it counts as drawn, so an image is never a picture of a page that had not answered yet, and a screen the battery stopped covering cannot keep a photograph here. A run without --docs-shots writes no image at all, which is what makes the battery safe to run on every pull request.

Nothing is typed into a form during the capture. The two templates are committed CKM exports with no patient content (corpus/templates/ckm/PROVENANCE.md), and no image carries a name, an identifier, or anything a clinician entered.

Every screen is shown twice, on the light ground and on the dark one. The theme is the reader’s choice, held in their browser, and both grounds are the same semantic token names redefined, so no screen knows a colour and nothing is styled twice.

The template library

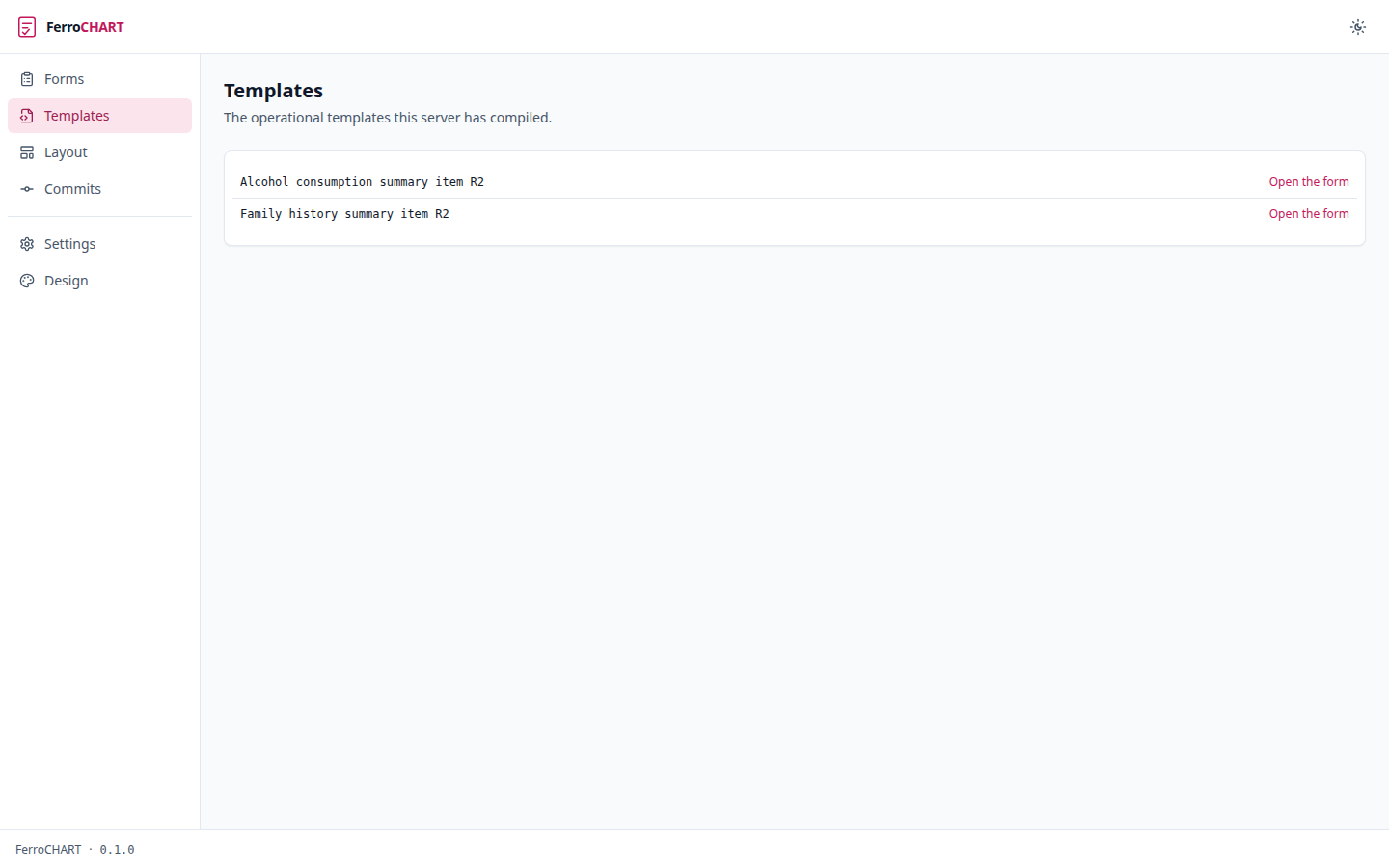

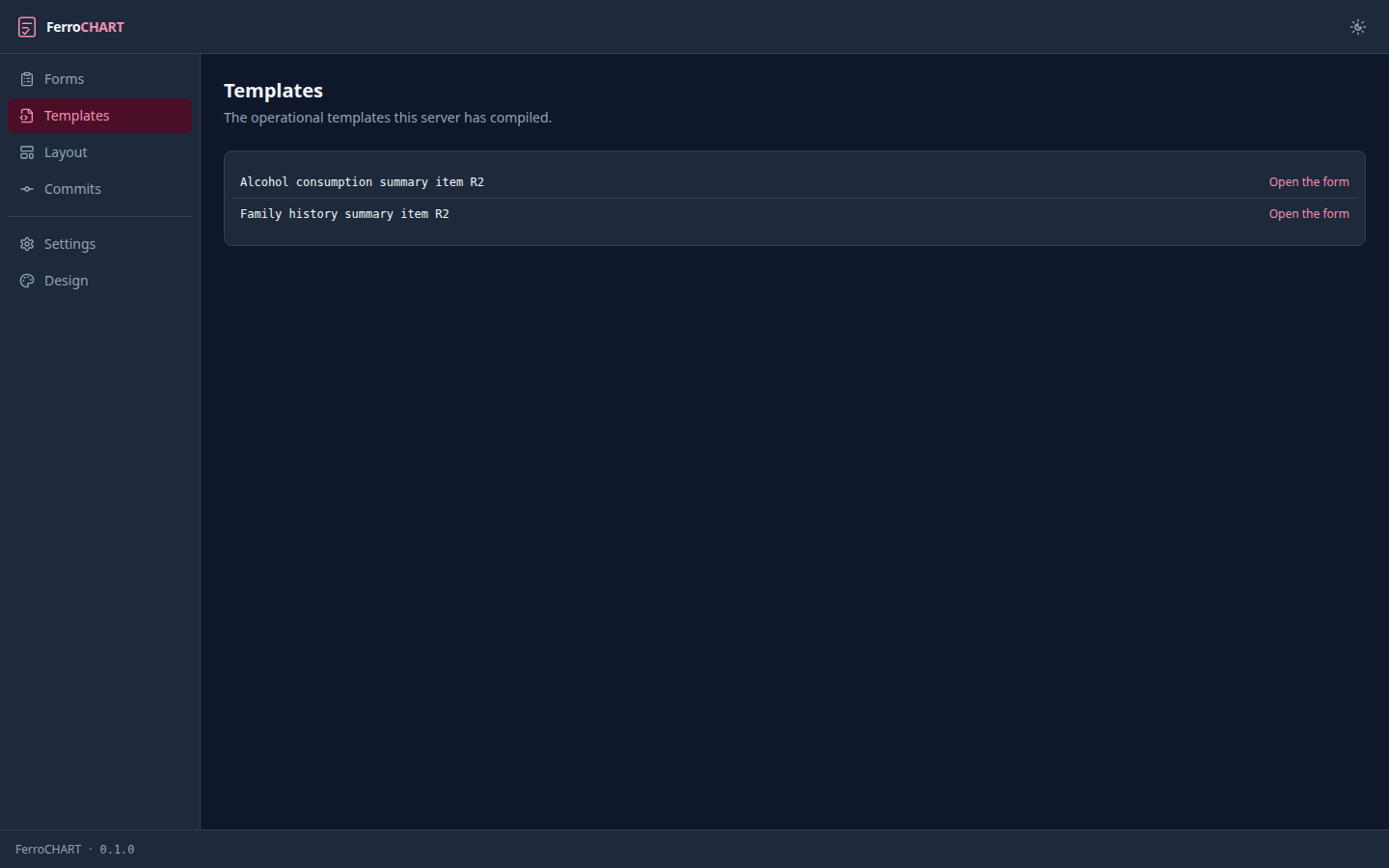

Every operational template the server compiled at startup, each one a link to the form it compiles to. A template that will not compile stops the server naming the file, so a template listed here is a template that became a form.

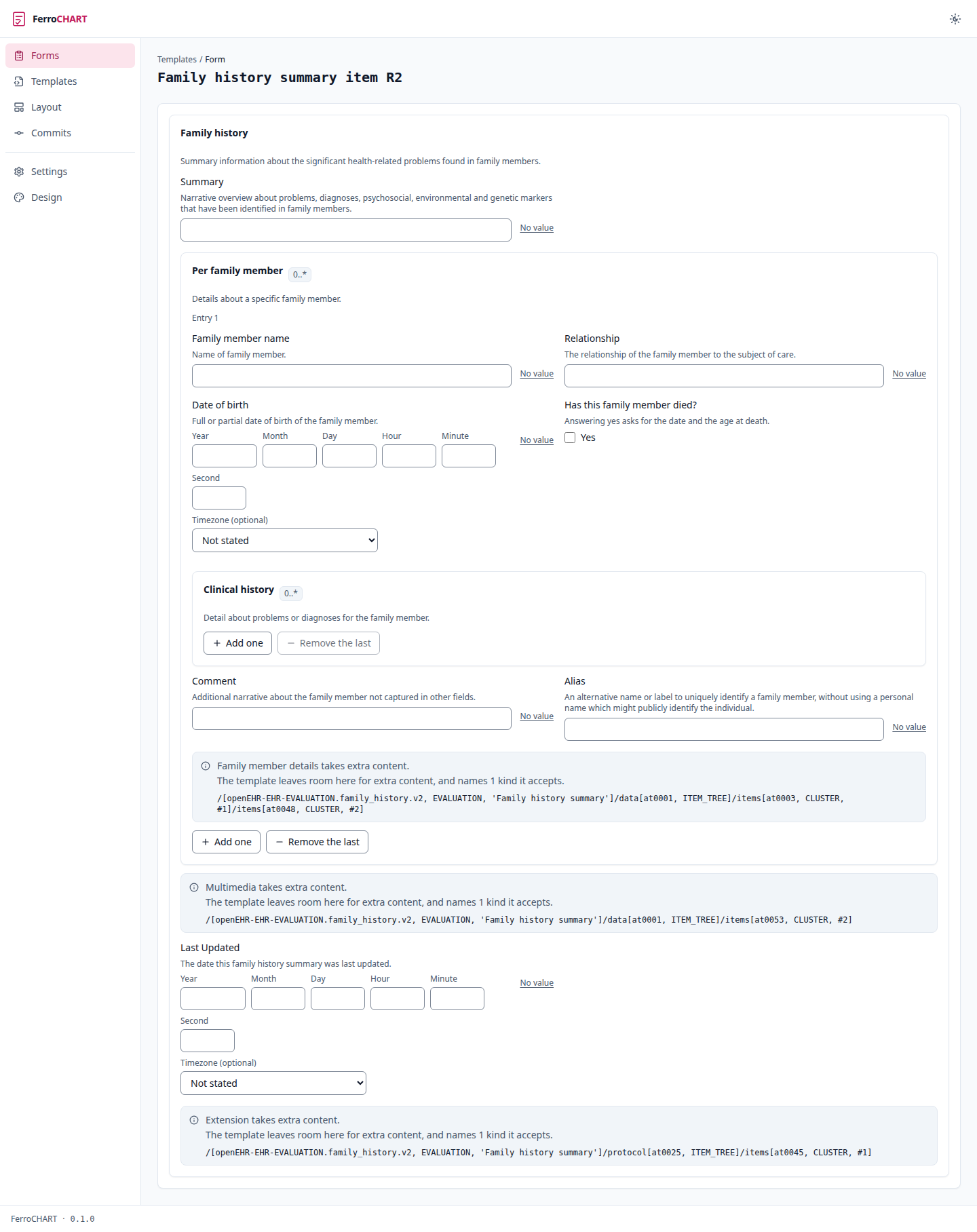

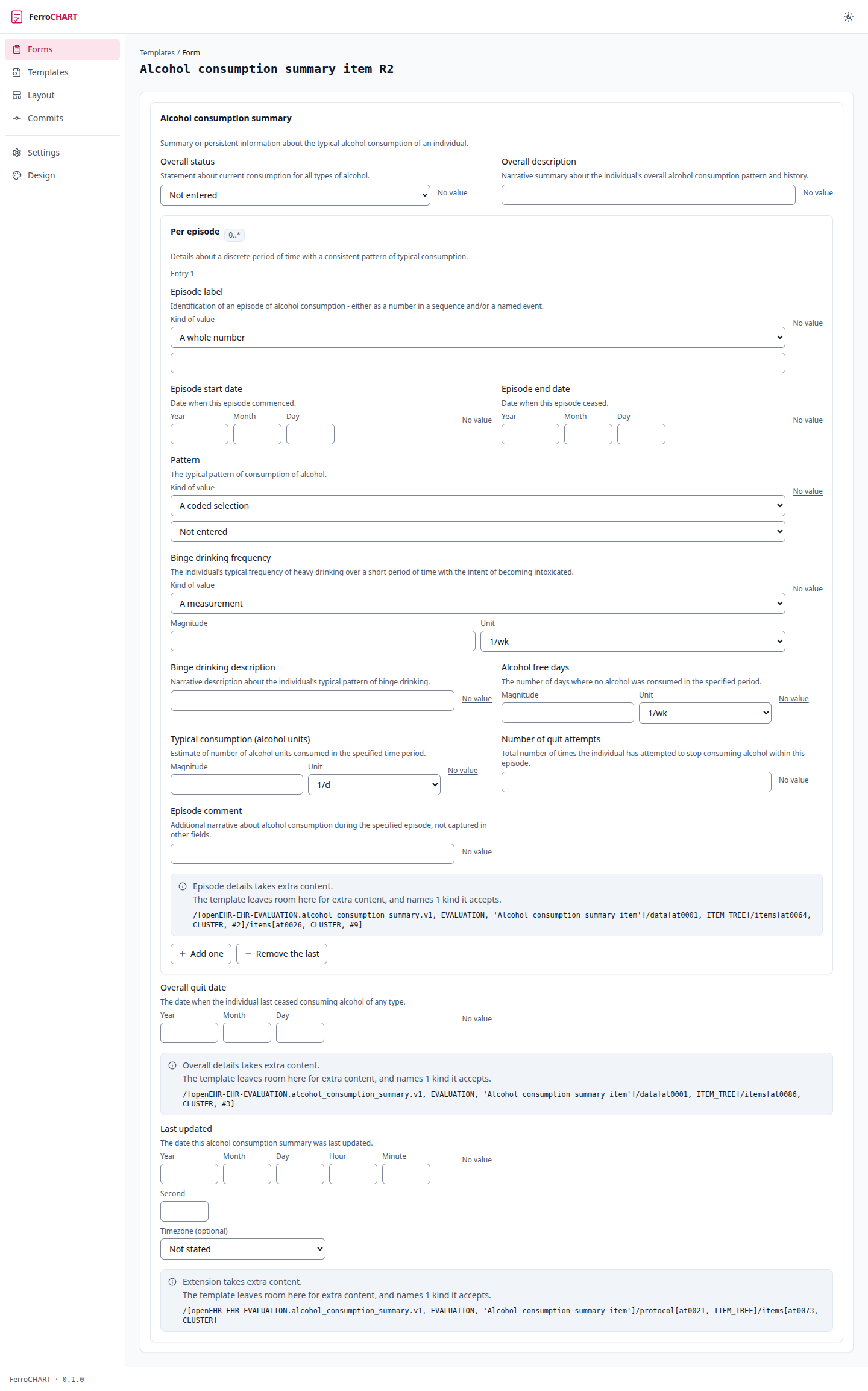

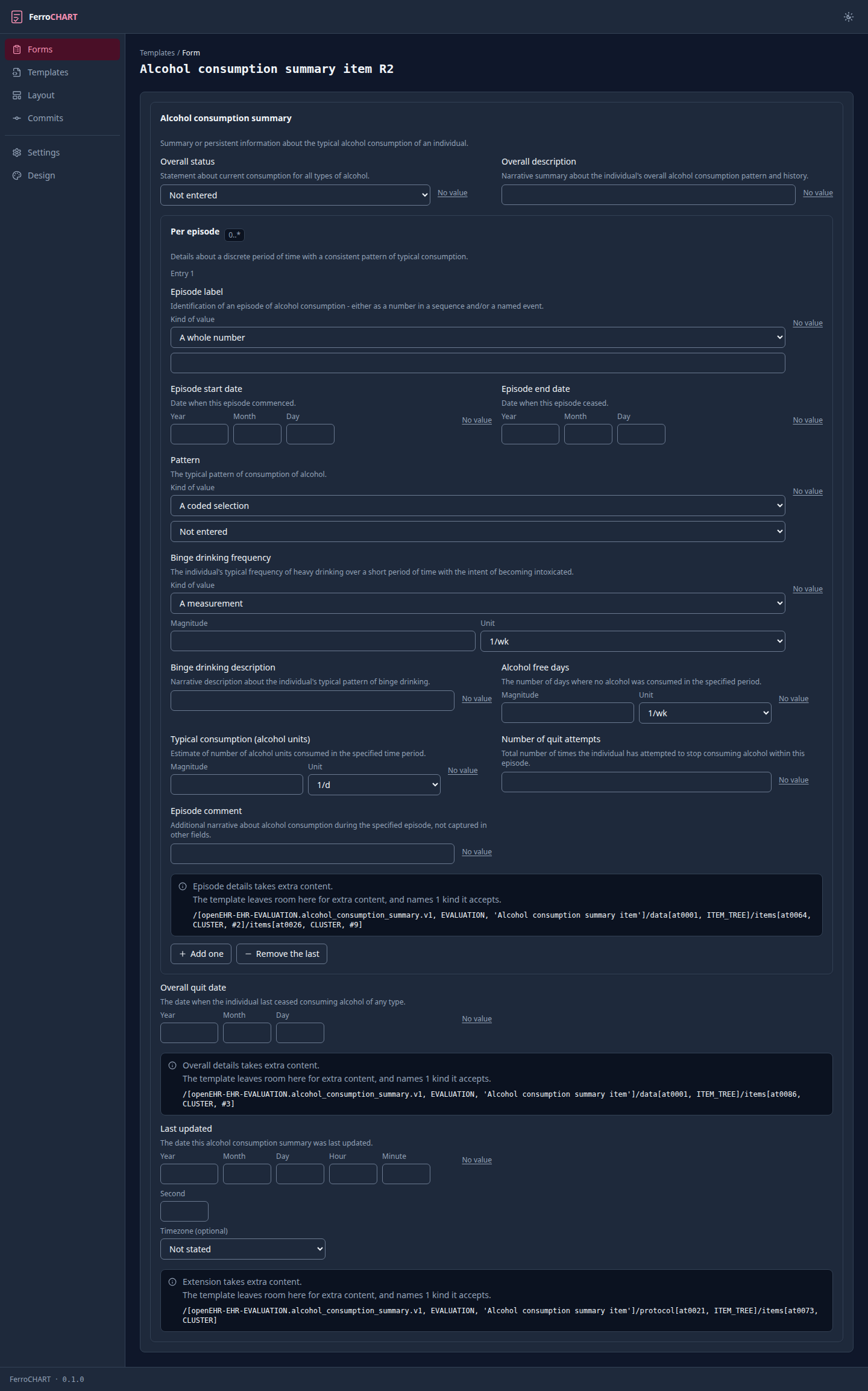

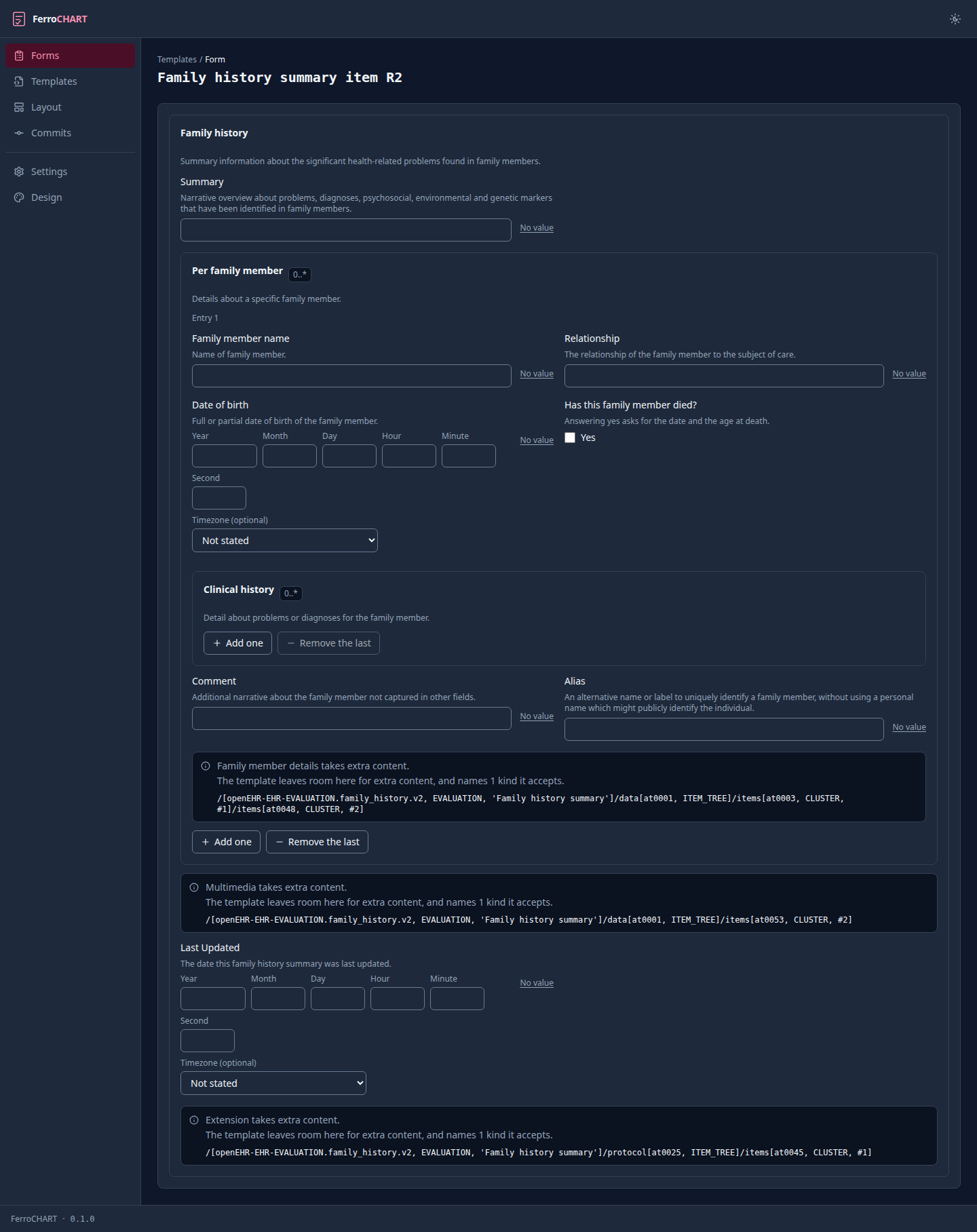

A form

The screen a clinician works on. What the template admits comes from the template; how the questions are ordered, named and revealed comes from the layout a person authored over it, where the server serves one. A deployment with no layout gets template order and the Reference Model tree.

A section the template says may be absent opens with none of it: its heading, its description, and the way to add one. openEHR AM Release-2.3.0 AOM1.4.html section 4.3.6 makes occurrences the count a node may appear in, so a lower bound of zero is the template saying none of that section is a complete answer. The battery opens one before it takes the picture, which is why the pictures show a form with a family member in it.

Each group is a card headed by the name a person gave it, or by the one the template gave it. A group whose occurrences allow more than one carries its bound as a badge and an add and remove pair, and it opens showing the occurrences the template requires. Each field draws the control its Reference Model type and its constraint call for: a quantity gets a magnitude and the units the template permits, a coded text gets a selection over its value set, a date gets the precision the template allows. A mandatory field is marked. Content the template left undetermined is drawn as a visible hole rather than dropped.

A field carries a value or a reason there is none, and never both: openEHR RM Release-1.1.0 data_structures.html section 5.2.3 gives ELEMENT no state that holds the two together. So a field draws its value control and a quiet “No value” beside it, and choosing a reason replaces the control rather than sitting under it. Answering “unknown” is rare and entering a value is the reason the form is open, so only one of them takes the width.

A question with a short answer takes half the row from the medium breakpoint up, so a form of dates and counts reads across as well as down instead of running several screens. Prose, an attachment, a choice and an interval keep the row, because each of them uses the width.

A date, a time or a date and time gets a native picker where the template pins one precision. Where it admits several there is no native control that collects a partial value, so the components are collected one labelled box at a time and the form assembles the ISO 8601 string, padding a number typed short. A timezone is picked from the list the browser already carries, and the form resolves it to the offset in force at the instant entered, because openEHR RM Release-1.1.0 data_types.html section 7.2.4 types DV_DATE_TIME on Iso8601_date_time and an offset is what that carries. Europe/Amsterdam is +01:00 in January and +02:00 in July, and working that out is not a clinician’s job.

The form above is laid out. Its template asks “Deceased?” as a plain question in the middle of nine others; the layout renames it “Has this family member died?”, moves the alias out of second place, and hides the date and the age at death until the answer is yes. None of that is in the template, and none of it could be: openEHR publishes no form artefact, so field order, labels, help text, defaults and conditional visibility are all authored. The layout is stored separately and keyed by node, which is what lets a template revision replay it rather than destroy it.

FERROCHART_OVERLAYS is where the server reads them from (Configuration). The surface a person authors one on is not built yet; the one this book shows was written by hand.

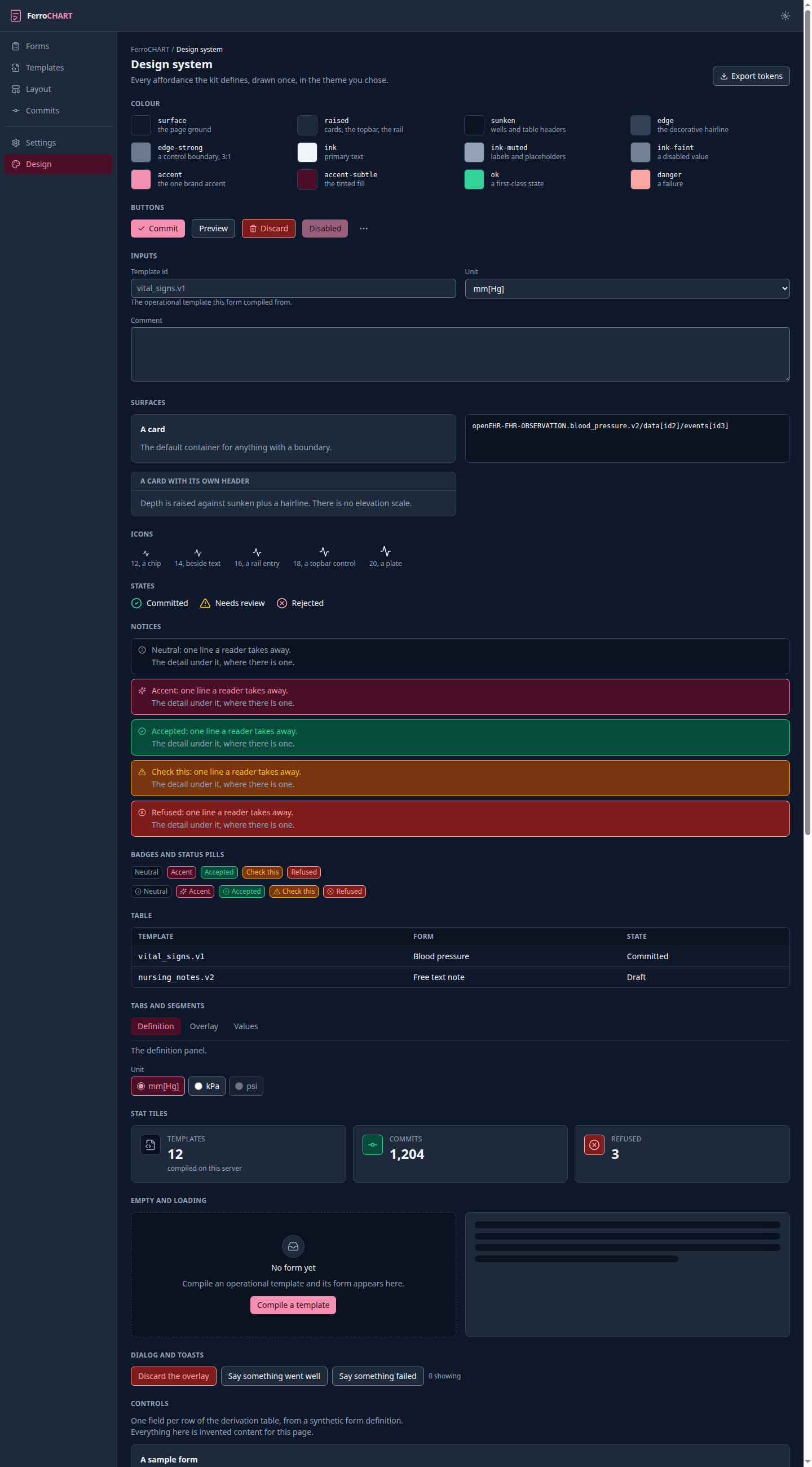

The design system

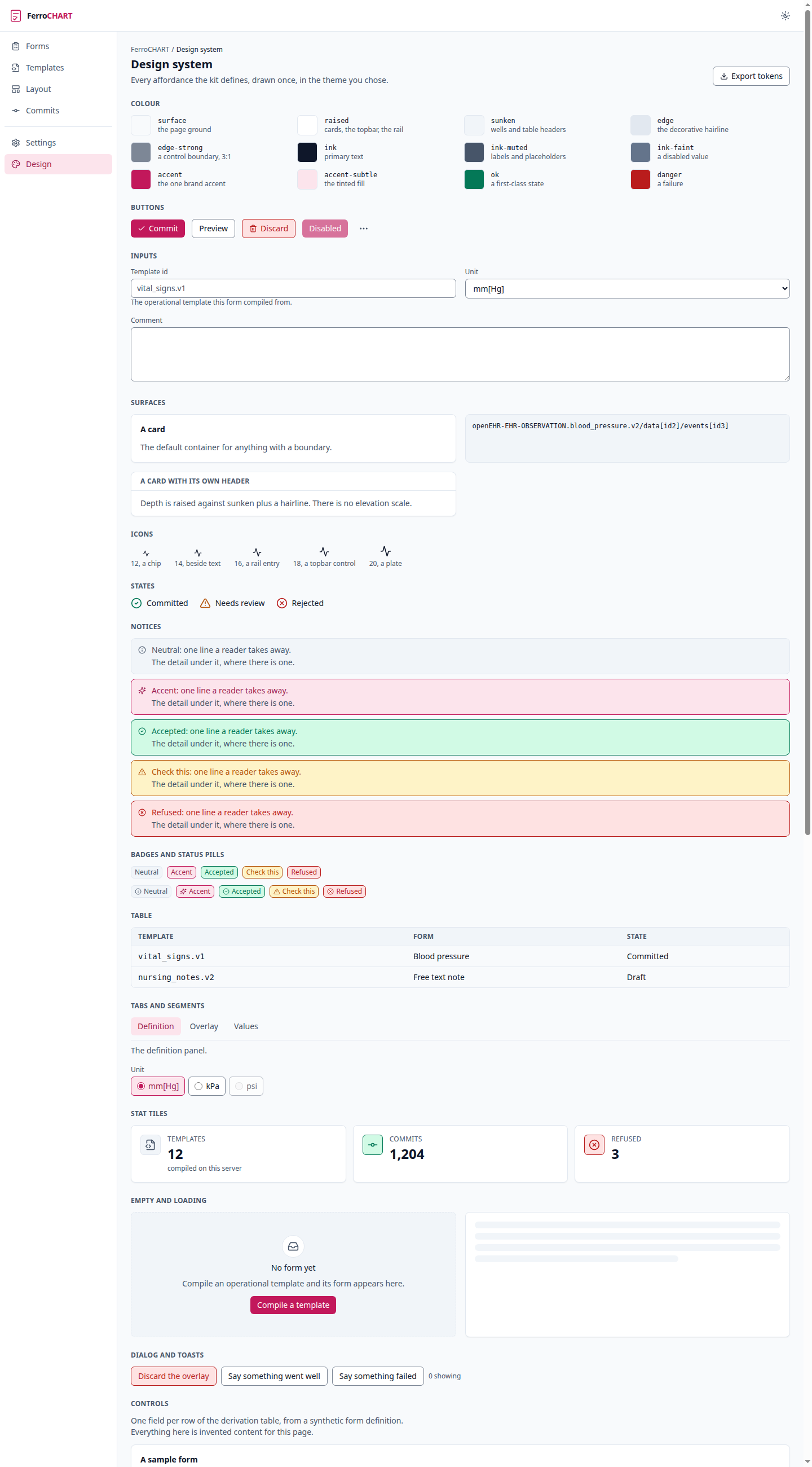

One screen drawing every affordance the kit defines, once. A second button style would have to appear here beside the first, which is what keeps the screens above consistent by construction rather than by review.

It is a build-time surface and a release does not carry it. Drawing every affordance means instantiating every control a second time, which cost 51506 gzipped bytes, 12.5% of what a clinician downloads. It is behind the design cargo feature, which is on by default: trunk serve brings it up at /ui/design and the browser battery photographs it, while the release bundle is built --no-default-features and answers that address the way it answers any address it does not serve.

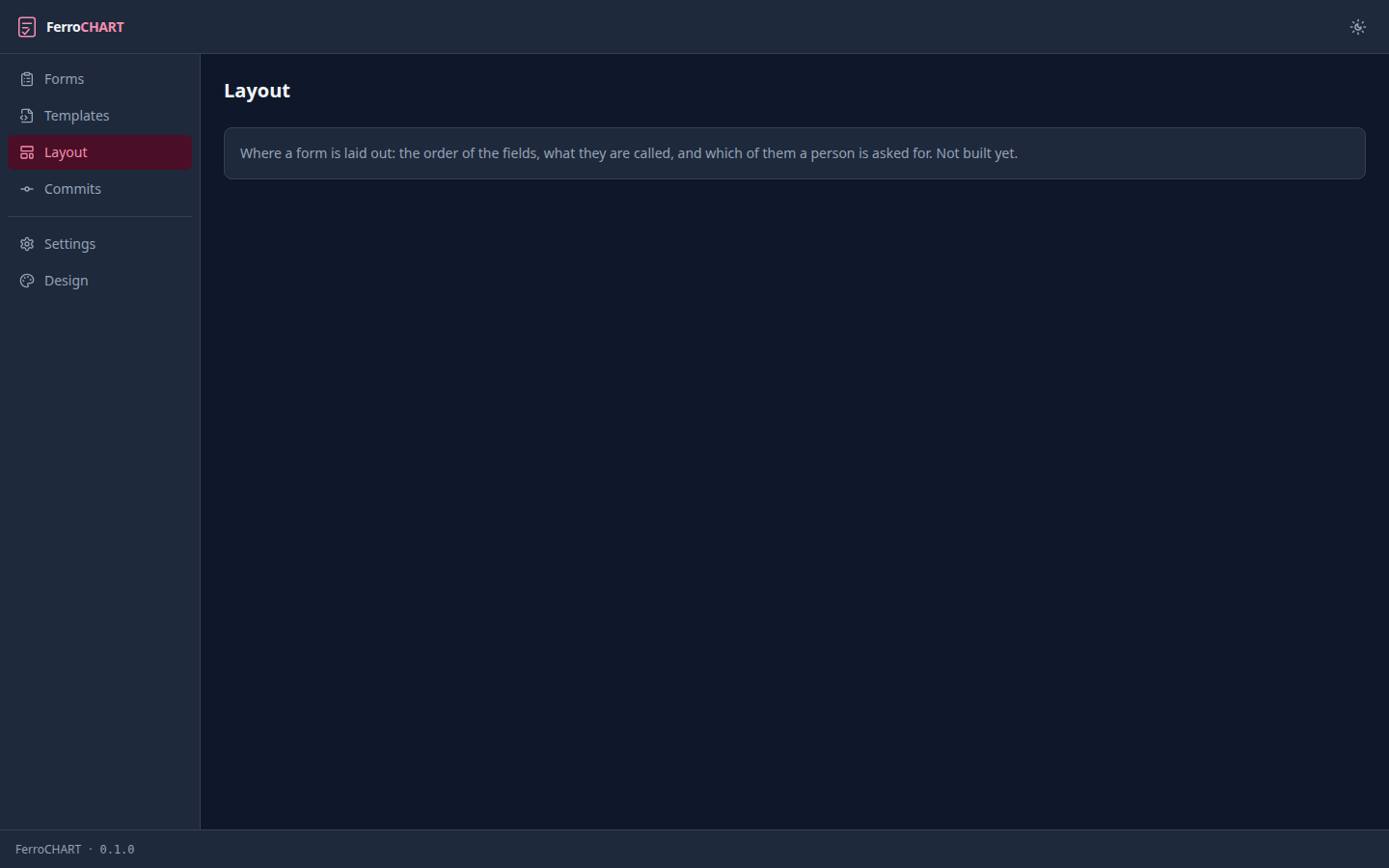

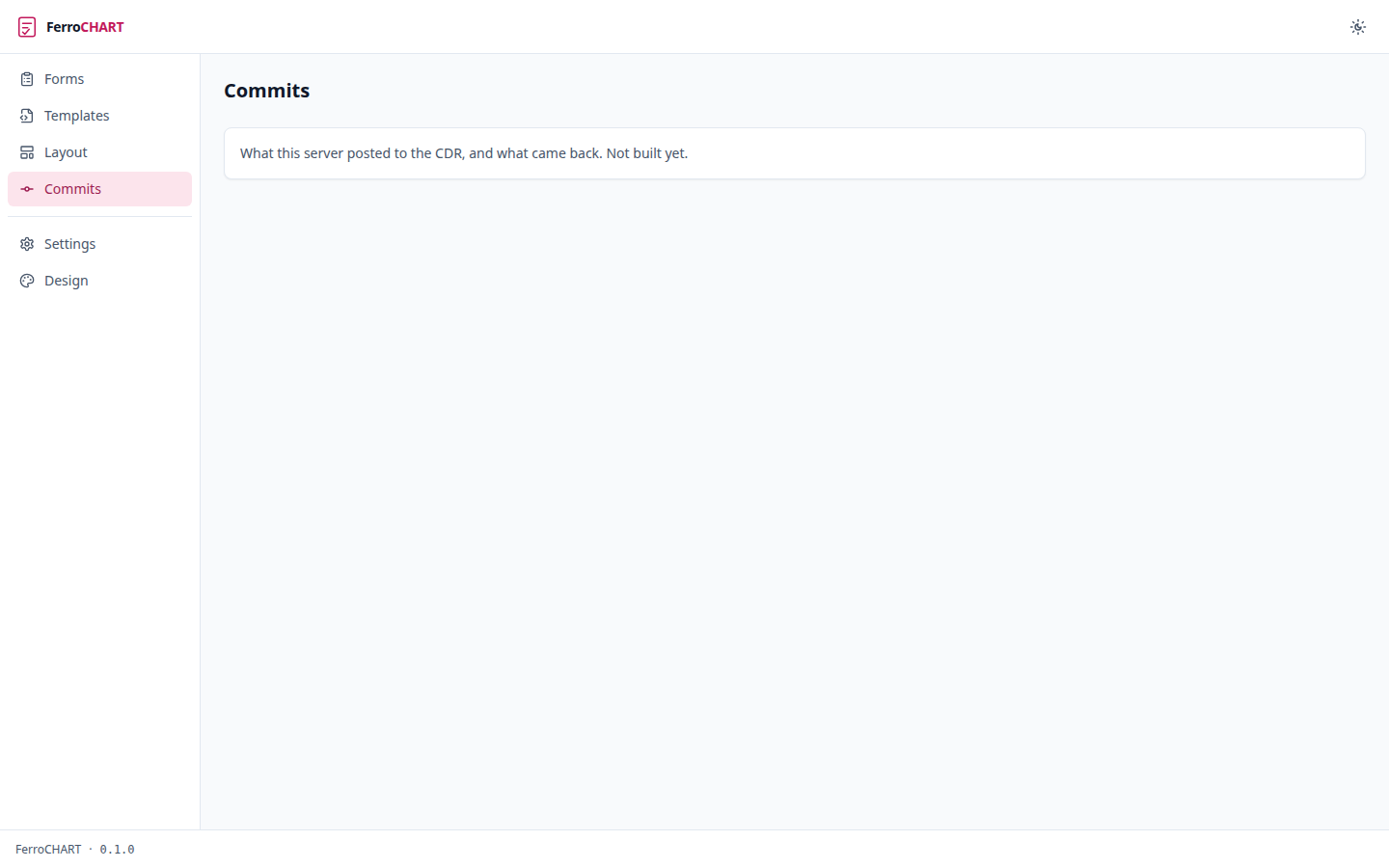

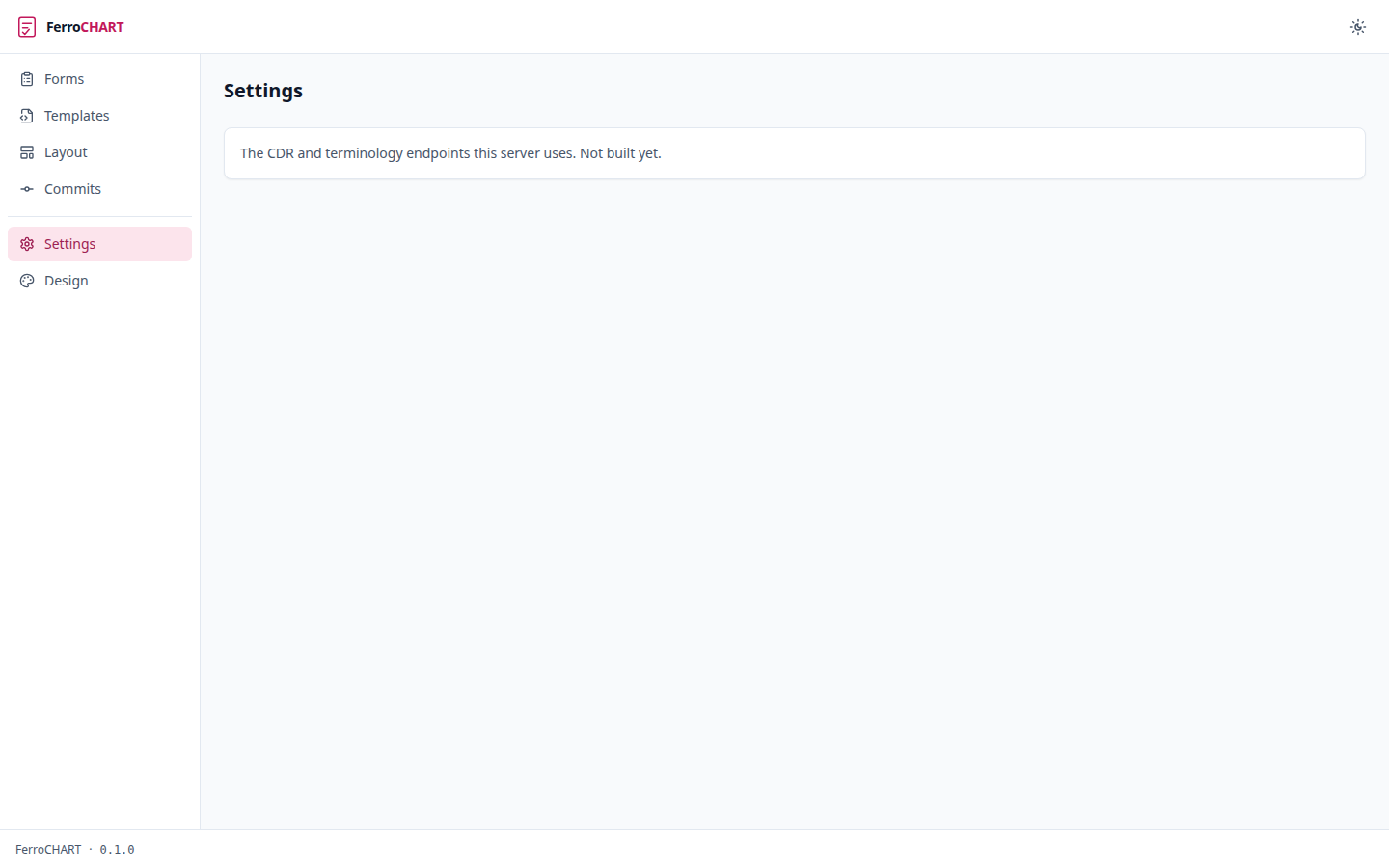

The screens with their frame and not yet their content

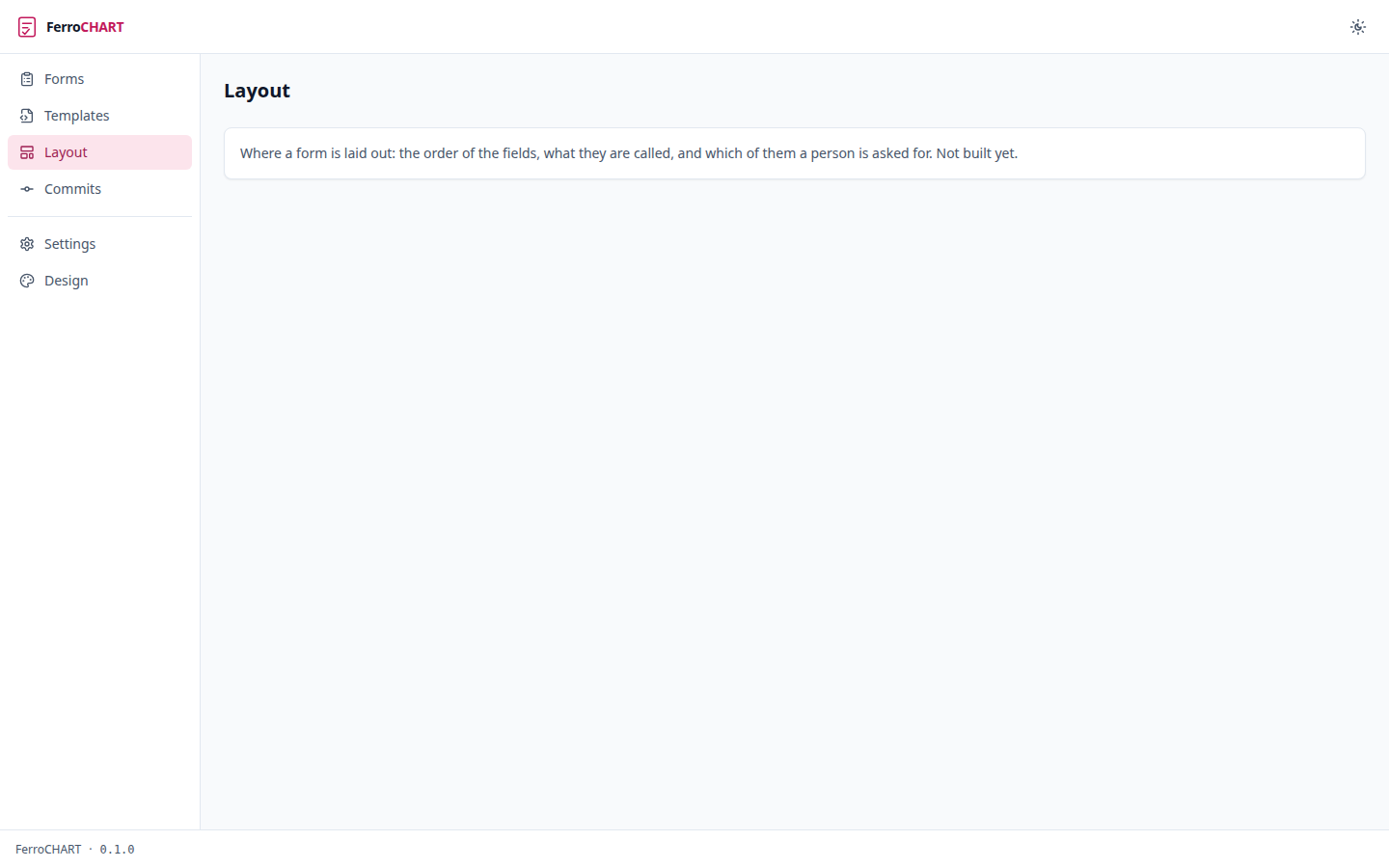

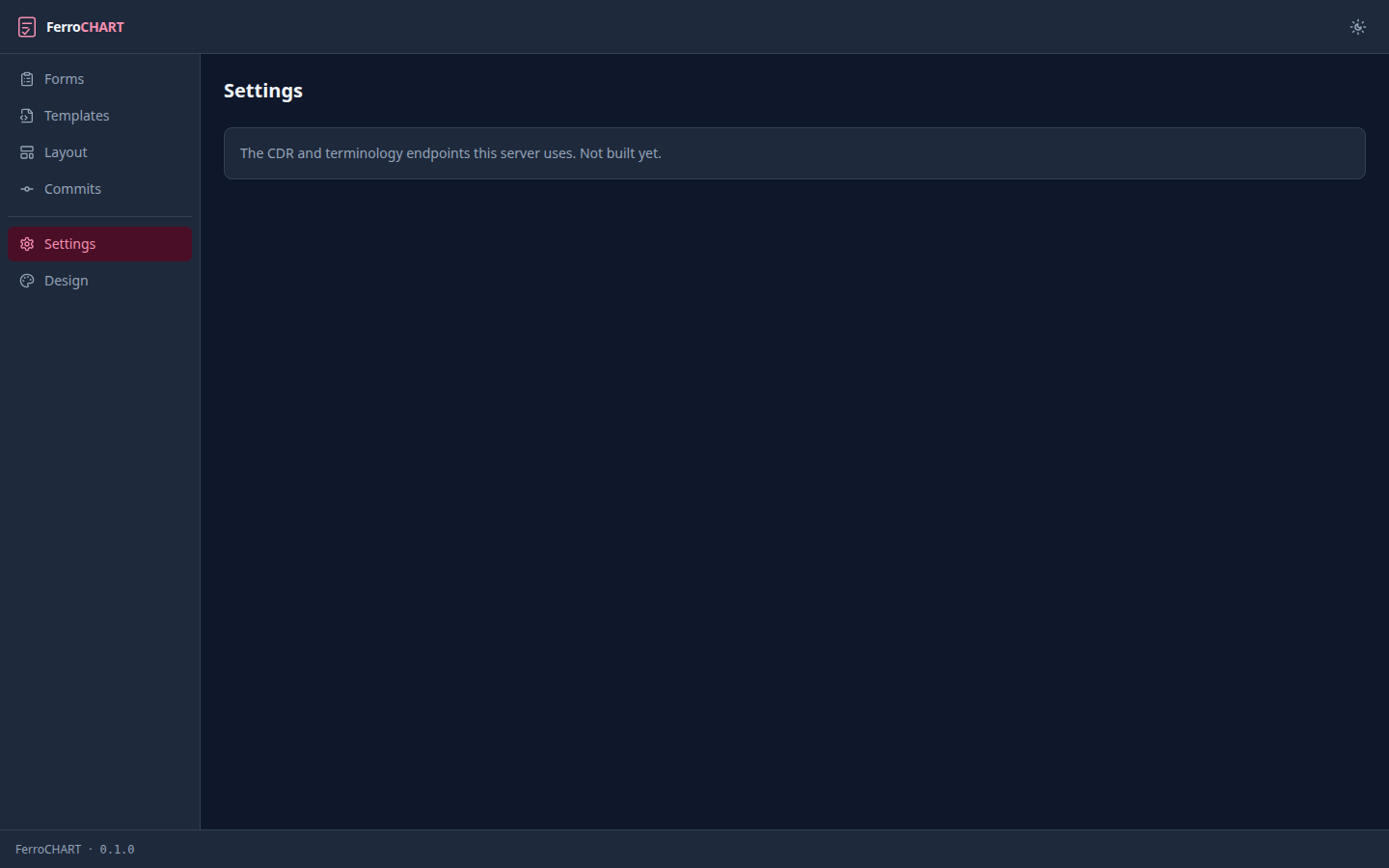

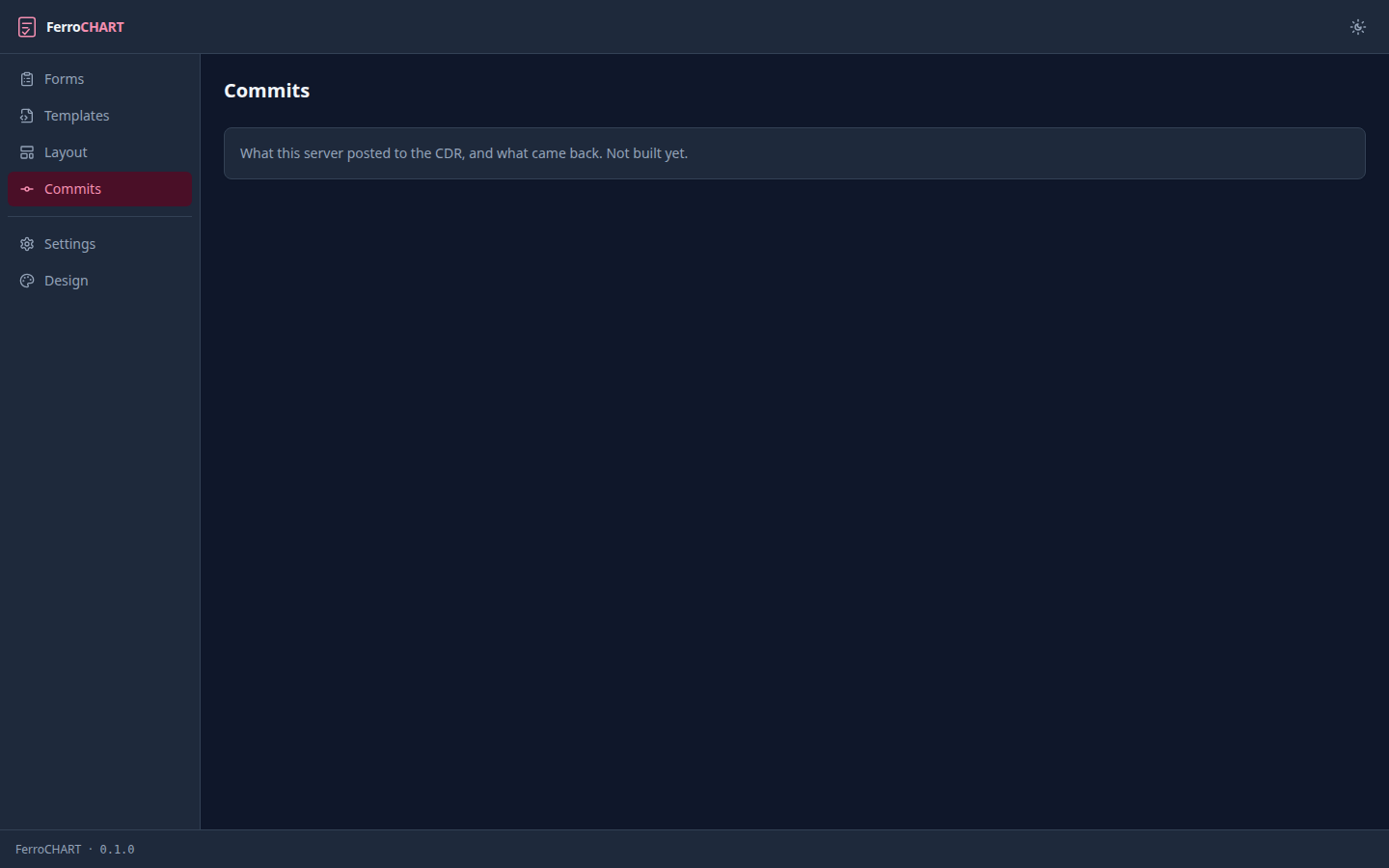

Three entries on the rail lead to a heading and a line saying what the screen will do. They are photographed with the rest, because a frame nobody has seen is a frame nobody notices has gone wrong.

Where a reader lands with nothing chosen

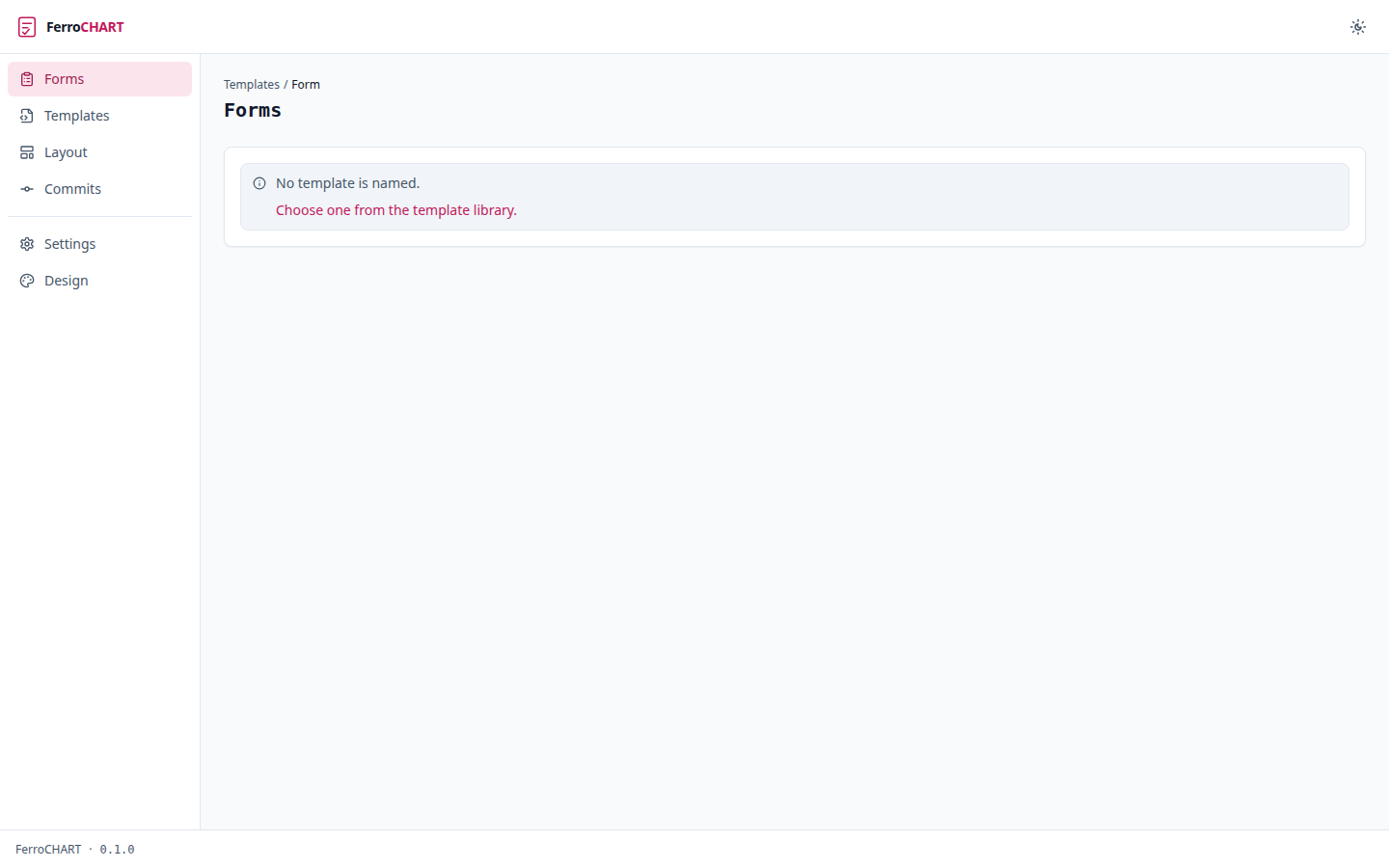

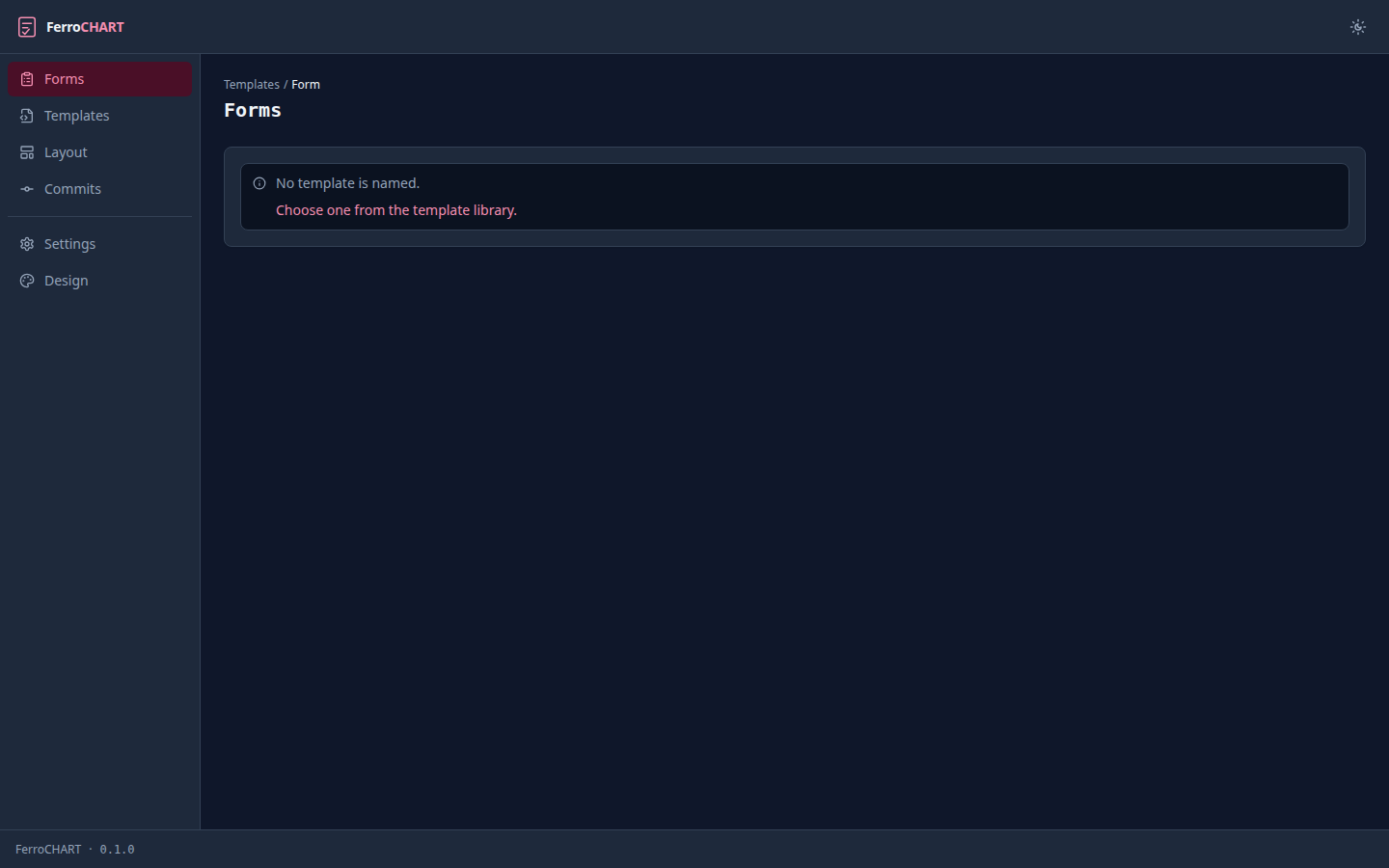

Clicking Forms on the rail with no template named reaches the form screen with nothing to draw, so it points at the library instead.

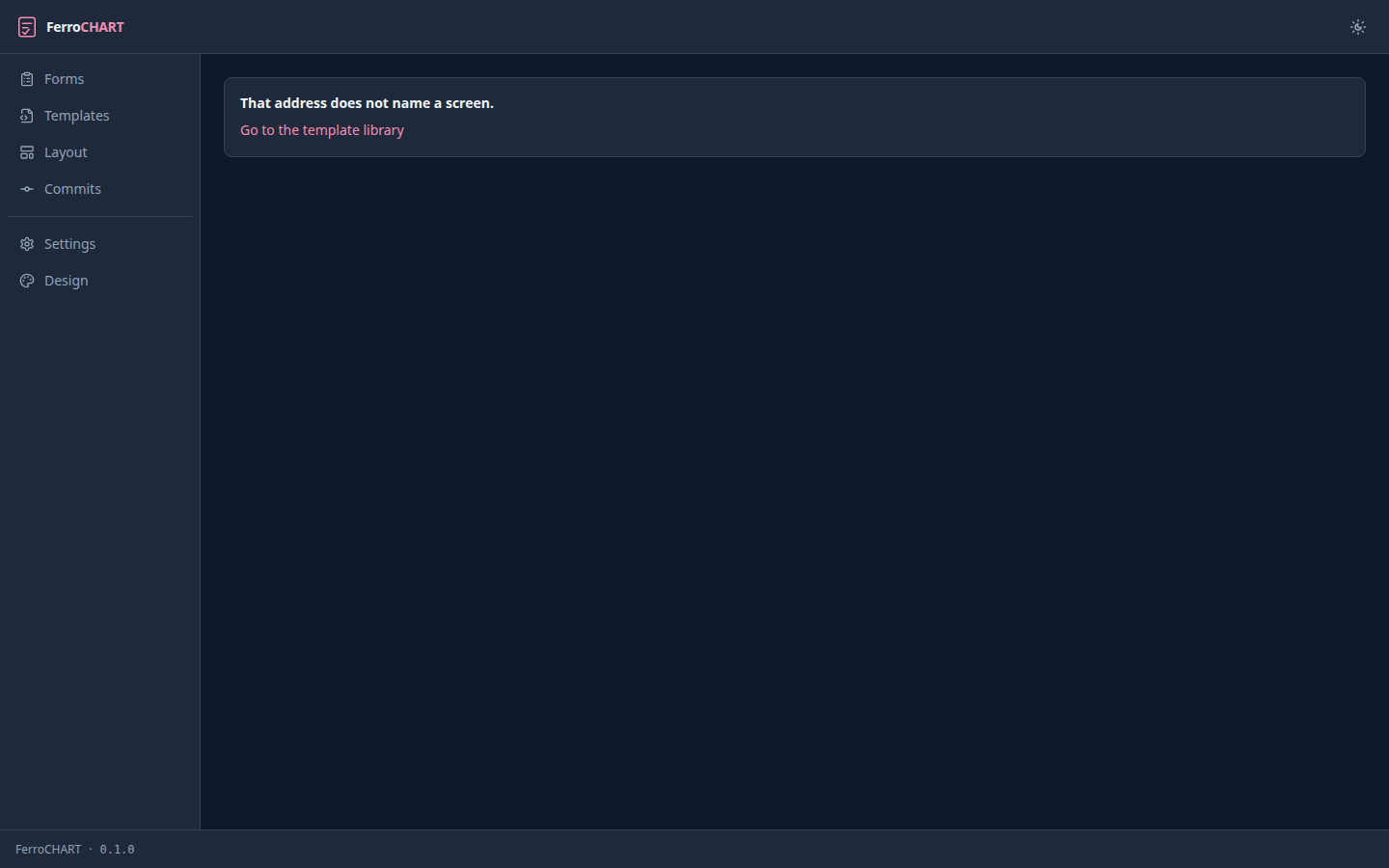

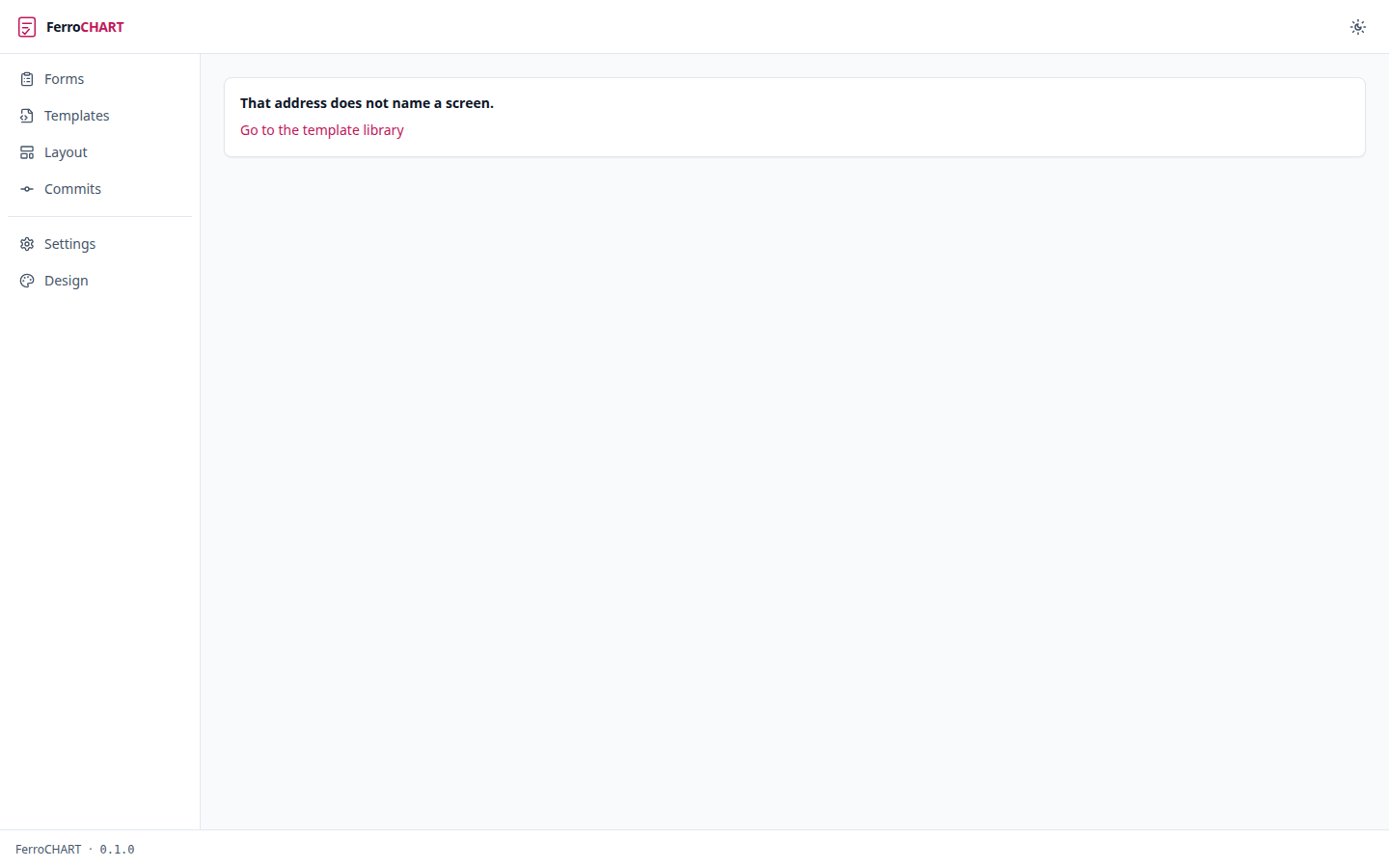

An address no route owns says so and offers the way back. It keeps the frame: a reader who mistypes an address still has the rail, the theme control and every way out of it.

What is not built

The rail carries three entries whose screens have their frame and not yet their content. The layout overlay’s authoring surface is issue #27; a commit log of what this server posted to the CDR and a settings screen for the endpoints it uses are both still frames.

No form can commit. The server serves the routes, and the browser carries the client for them, and what is missing is the control on the form. So every screen here is a read.

Nobody can author a layout on a screen. The browser reads one and the store writes one, so the layout this book shows was written by hand. That is the authoring surface above, and it is the largest thing missing.

A section and a column grid reach no screen. The overlay model carries both, and the renderer reads the order, the labels, the help text, the defaults and the visibility rules and ignores those two. Nothing stored is discarded; a form laid out in sections draws in the Reference Model tree until they land.

Running the battery yourself

$ scripts/ui-e2e.sh

It needs cargo, cargo-nextest, trunk, curl, and a running Docker, and it owns everything it drives: it stages the templates, starts the server, serves the bundle, and runs the browser in a container. A journey that fails writes a screenshot and the whole document into target/ui-e2e-failures, and the CI job uploads that directory when a run fails.

To drive the published container image instead of a build of this tree:

$ scripts/ui-e2e.sh --image ghcr.io/ferrohealth/ferrochart:0.1.1

It pulls the image, starts it over the same two templates and the same committed layout, and drives it with the same browser. An image that answers /health and serves no /ui fails the run naming it, which is the one thing this mode exists to catch. It runs only the journeys that hold for every release, because the image is usually the last release and the rest assert what this tree does. The released workflow runs it weekly.

To drive a deployment you already have, name both ends:

$ scripts/ui-e2e.sh --base-url http://ferrochart:8180 --webdriver http://127.0.0.1:4444

Both are required together. A browser inside a container reaches a server on the host through the host gateway rather than on 127.0.0.1, and a browser that cannot reach the address is a red lane with no defect behind it.
